Gallery

Hood; Portable CleanBooth; Vertical Airflow, ISO 6, Vinyl, Knock-Down, 54" W x 56" D x 97" H, 120 V

HEPA-filtered FFU coverage provides ISO rated mini-cleanroom environment

Hood; Portable CleanBooth; Vertical Airflow, ISO 6, Vinyl, Knock-Down, 54" W x 56" D x 97" H, 120 V

ISO-ratThe Portable CleanBooth wheels into position above a workbench or equipment to provide ISO 5-compliant flow of HEPA-filtered air

Portable CleanBooth™, 8’W x 4’D x 8’H

8’W x 4’D CleanBooth™ includes 4 HEPA fan/filter units and side curtains to create an inexpensive, portable ISO 5 processing enclosure

Portable CleanBooth Laminar Flow Stations

Particle Containment Enclosure

Stop contamination from in-room processes. Exhausts outside cleanroom.
• Hardwall designs
• Good/excellent cleanliness
• Steel modular frame
• Filtered exhausts
• ISO 3 - 8

Class 100 Portable Knock-Down CleanBooth for Assembly of Agricultural Robotics

This Class 100 portable cleanroom booth is used to assemble robotics for agricultural applications. The ceiling is entirely covered by HEPA fan/filter units for class 100 ultra-low particle work area. Anti-static PVC softwall panels reduce the risk of ESD-related damage to vital electrical components.

Portable Softwall Cleanroom with for Manufacturing Optical Transceivers for 5G

Portable clean room for manufacturing optical transceivers for 5G. This unit provides HEPA-filtered vertical airflow for particle-safe processing applications.

Portable Laminar Flow CleanBooth™, 4'W x 2'D

Terra's Portable CleanBooth™ provides a mobile, economical mini-cleanroom wherever you need it! It wheels into position above a workbench or equipment to provide an ISO-compliant flow of HEPA-filtered air (flexible side panels and frame included).

Critical Environment Solutions

Terra's mission is to help customers in highly regulated industries transform the world with critical environment solutions that improve health, safety, performance, and yields. These environments may comply with stringent UL, ISO, IEST, ASTM and OSHA standards and local requirements.

Vertical Airflow Portable Cleanbooth used for Aerosol Impact Research

This vertical airflow portable clean booth is used for aerosol impact research. Full HEPA-filtered ceiling coverage maintains ISO 6 conditions within the work area. Static-dissipative strip panels create an enclosed area with enhanced air laminarity.

Side Softwall Panel Kit; for 4' x 4' Portable CleanBooth, Vinyl Panels

Portable Clean Room with Soft Vinyl Walls and Curtain for Testing Pharmaceuticals

Portable CleanBooth cleanrooms include built-in low-energy lighting and long-lasting HEPA fan filter units. Soft vinyl wall paneling provide a floor-to-ceiling barrier, creating an isolating positive pressure area for quality control testing pharmaceuticals.

Portable ISO-Rated Flow Hood

Terra's Portable CleanBooth™ provides a mobile, economical mini-cleanroom wherever you need it! It wheels into position above a workbench or instrument to provide an ISO-compliant flow of HEPA-filtered air (flexible side panels and frame included).

Vertical Airflow Portable CleanBooth used for Contamination and Particle Monitoring

The vertical airflow portable CleanBooth is used for contamination and particle monitoring. With the flexible continuous side panels this creates a 3-sided enclosure which enhancing air laminarity. HEPA-filtered ceiling coverage allows for ISO 6 conditioned to have a clean work area.

Portable Horizontal Laminar Flow CleanBooth Hood

Double-wide horizontal design with LED lighting provides low-energy HEPA-filtered air flow. Internal baffling plates with anodized aluminum diffuser panel offers uniform air speed. Castered, powder-coated steel frame and vinyl enclosure ensure easy mobility.

Portable Horizontal Flow CleanBooth

The Portable CleanBooth wheels into position above a workbench or instrument to provide an ISO-compliant flow of HEPA-filtered air.

Portable Laminar Flow CleanBooth™, 4'W x 2'D

Terra's Portable CleanBooth™ provides a mobile, economical mini-cleanroom wherever you need it! It wheels into position above a workbench or equipment to provide an ISO 5-compliant flow of HEPA-filtered air (flexible side panels and frame included).

CleanBooth

Portable Horizontal Flow CleanBooth Fan Filter Unit

HEPA Fan Filter Unit is securely mounted to the CleanBooth frame to provide horizontal laminar air flow.

Vertical Cleanbooth Airflow Diagram

Vertical laminar flow CleanBooths provide a mobile ISO-rated particle-free mini-environment.

Horizontal Cleanbooth Airflow Diagram

Horizontal flow CleanBooths provide a mobile ISO-rated particle-free mini-environment.

Class 100 Portable Cleanroom for Testing Pharmaceuticals

Class 100 Portable CleanBooth cleanrooms include built-in low-energy lighting and long-lasting HEPA fan filter units. These FFUs provide many years of use with proper filter replacement, while the slim-profile LEDs won’t disrupt the FFU’s laminar flow.

Mobile Protection for Workstations

Terra’s CleanBooth™ Series can be repositioned over different workspaces, ideal for facilities where workflows change frequently. Curtains are easy to remove.

HEPA Fan Filter Units (FFUs)

The 2' x 4' FFU houses a HEPA filter, rated 99.99% efficient with 0.3 micron particles, that provides an ISO-compliant air flow in the enclosure. Advanced baffle technology and air diffuser grille ensures uniform face velocity.

Double Wide Horizontal CleanBooth

Double-wide horizontal CleanBooth allows for an even larger capacity of processing equipment to be utilized in this mobile clean room system.

Portable Cleanbooth: Horizontal AirFlow

The fan/filter unit mounted in the rear of the cleanbooth to provide a horizontal laminar flow of air across the work surface. Flexible panels on three sides of the cleanbooth allow enchances air travel within the booth.

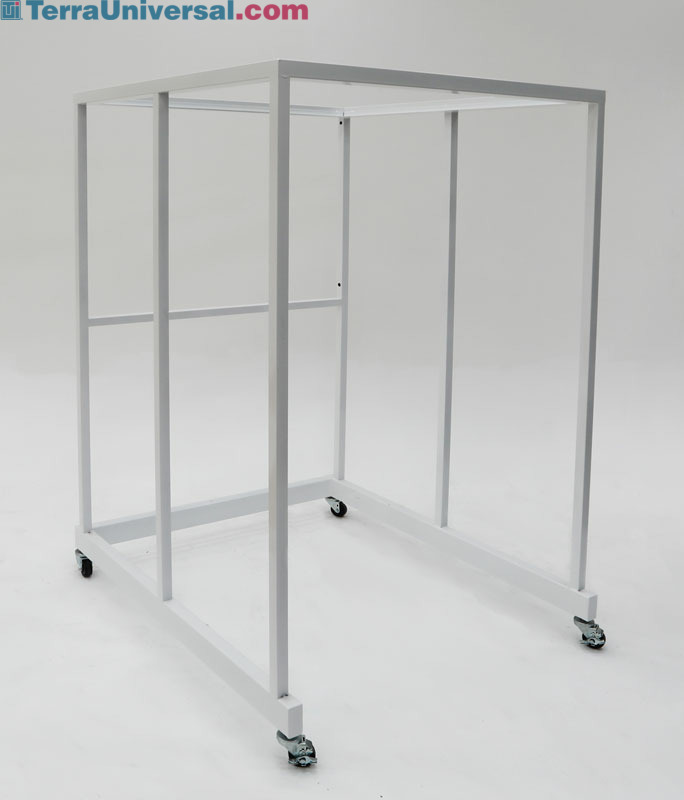

CleanBooth™ Steel Frame

CleanBooth™ frame is fabricated of 1" x 2" powder-coated steel members for strength and includes heavy-duty casters for easy positioning above a table or process equipment.

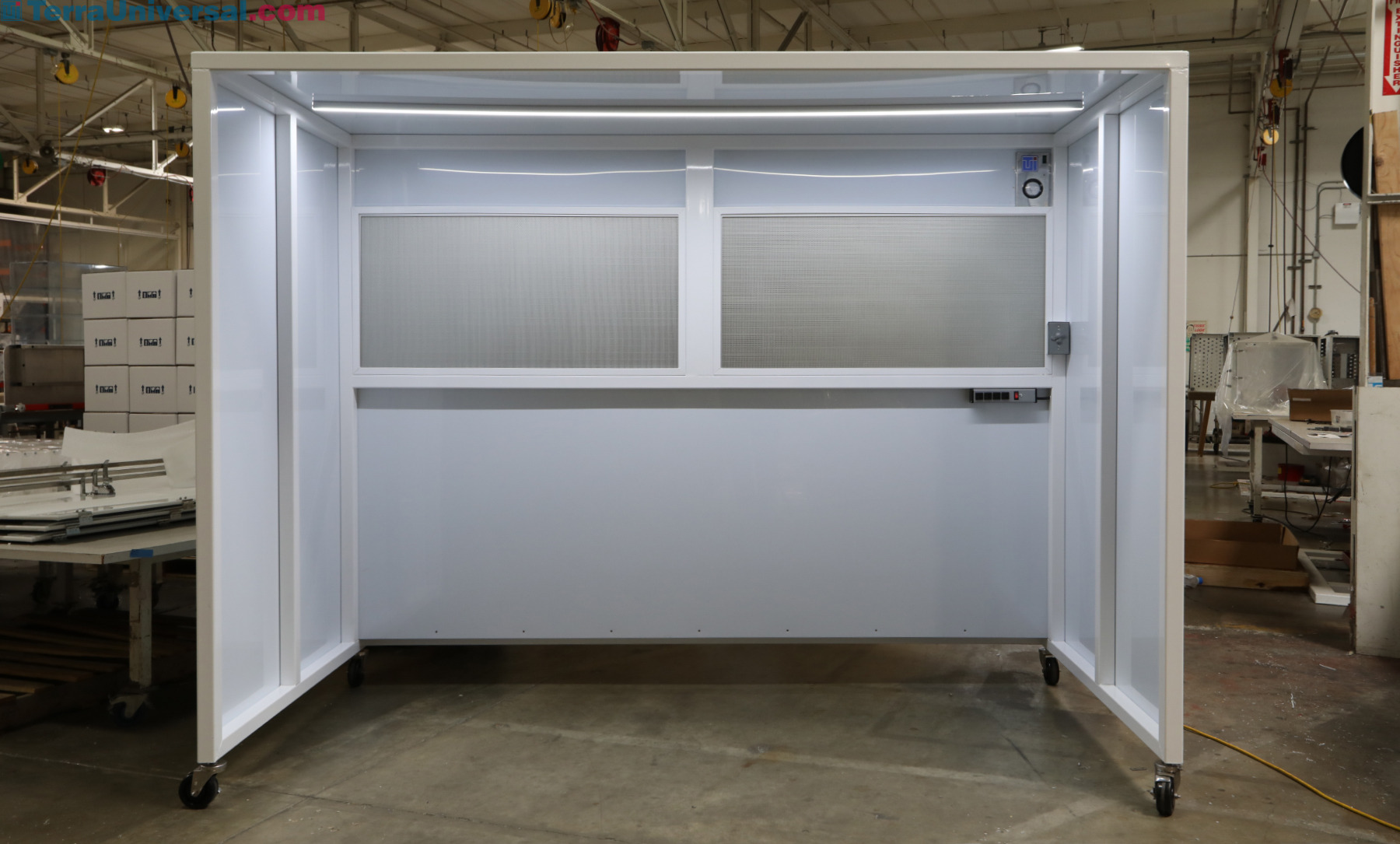

CleanBooth™ Portable Cleanroom with Horizontal Laminar Airflow

Turn any area into a fully-operational processing suite with this portable horizontal, back-to-front laminar flow cleanroom for pharmaceutical manufacturing. Built-in HEPA filtration removes 99.99% of particles at 0.3µm.
