1600-89A
Terra Part # 1600-89A
$14,447
Usually ships in 20-24 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 1600-89A
42586
Glovebox; DryClean SnowBox, 304 Stainless Steel, 52" W x 25.5" D x 29.5" H, Left-Side Air Lock
Product Details
  • Available ISO Ratings: ISO 6, ISO 7, ISO 8
  • Product dimensions include airlock
  • Includes installation of a 1/8" (3 mm) NPT bulkhead port and (2) high-pressure hoses - (1) 3' (914 mm) length inside (for connection to SnoGun™)
  • Order SnoGun™ II separately
  • Comes with standard LiftLatch.
  • Locking Liftlatches also available - specify Locking Liftlatch when the chamber is ordered

Material Type: Stainless Steel

Model: DryClean SnowBox

Number of Glove Ports: 2

Window Material: Static-Dissipative PVC

Chamber Material: 304 Stainless Steel

Chamber Width: 34.5"

Chamber Depth: 24"

Chamber Height: 28"

Chamber Dimensions: 34.5" W x 24" D x 28" H

Maximum Working Height: 28"

Airlock Opening: 12" W x 12" H

Unit of Measure: EA

Electrical Specifications: 12 V

Weight, Product: 75 lb

Dimensions, Product: 52" W x 25.5" D x 29.5" H

Weight, Shipping: 236 lb

Dimensions, Shipping: 59" W x 32.5" D x 37" H

Package Type: Crate

Buy Accessories
  1. Sno Gun II high-precision handheld dry ice cleaner removes contaminants without residue  |  4545-00A displayed
    Dry Ice Cleaner; Sno Gun II, Va-Tran Systems, Inc. Ships Free Free shipping in contiguous USA
    $1,969
    Increase Down Increase Up
  2. Power cable port protects the isolator environment while allowing for electronic equipment  |  2900-70 displayed
    $310
    Increase Down Increase Up
  3. Cordgrip connector plastic .599 inches hole size straight through black  |  3305-70 displayed
    $61
    Increase Down Increase Up
  4. Shown: Vacupass installed in the interior wall of a biosafety cabinet  |  4642-49 displayed
    $185
    Increase Down Increase Up
  5. Automatic Relief/Bleed valve in stainless steel. Product details may differ.  |  1606-60 displayed
    $362
    Increase Down Increase Up
  6. Automatic Relief/Bleed valve in stainless steel. Product details may differ.  |  1606-60 displayed
    $362
    Increase Down Increase Up
  7. Acrylic flow meter, valve-2-20SCFH  |  1600-32 displayed
    $199
    Increase Down Increase Up
  8. Humidity sensor allows economic set point control  |  9500-06 displayed
    $1,384
    Increase Down Increase Up
  9. Terra's Smart® IsoDry® Nitro-Watch™ logs data at user specified intervals: RH, temp, door open/close, purge on/off, and sensor removal/attachment
    Request Quote
    Increase Down Increase Up
  10. Monitors and controls dew/frost point  |  1401-94 displayed
    DewWatch Hygrometer; for Glovebox, 120V Quick Ship+ Only 4 left in stock
    $8,422
    Increase Down Increase Up
  11. Humidifier provides inline humidification of nitrogen  |  9081-02 displayed
    Humex 2; for Glovebox, 120VAC, 50/60Hz Quick Ship+ In stock soon
    $3,380
    Increase Down Increase Up
  12. Designed to provide reliable gas drying without the hassle and expense  |  9082-01 displayed
    Dryex™ 10 Gas Dryer Quick Ship+ In stock
    $4,231
    Increase Down Increase Up
  13. Removes more contaminants with less pressure drop  |  9082-02 displayed
    $377
    Increase Down Increase Up
  14. Vacuum control module automatically controls pump operation to maintain stable vacuum levels inside a vacuum chamber.
    Vacuum Control Module; 120 V Quick Ship+ Only 7 left in stock
    $3,553
    Increase Down Increase Up
  15. Neoprene accordion sleeves with nitrile gloves  |  1689-47 displayed
    $675
    Increase Down Increase Up
  16. Neoprene accordion sleeves with nitrile gloves  |  1689-47 displayed
    $649
    Increase Down Increase Up
  17. Neoprene accordion sleeves with nitrile gloves  |  1689-47 displayed
    $650
    Increase Down Increase Up
  18. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1670-83 displayed
    $167
    Increase Down Increase Up
  19. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1670-83 displayed
    $181
    Increase Down Increase Up
  20. Warranty; 2 Year, Glovebox, Parts
    Request Quote
    Increase Down Increase Up
  21. Warranty; 3 Year, Glovebox, Parts
    Request Quote
    Increase Down Increase Up
  22. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  23. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  24. White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  25. Equipment Testing
    Request Quote
    Increase Down Increase Up

Gas-Purged Stainless Steel Glove Boxes

  • DryClean SnowBox DryClean Glove Box Dry Ice Cleaning Station
DryClean SnowBox

Features and Benefits

View Glovebox Dimensions

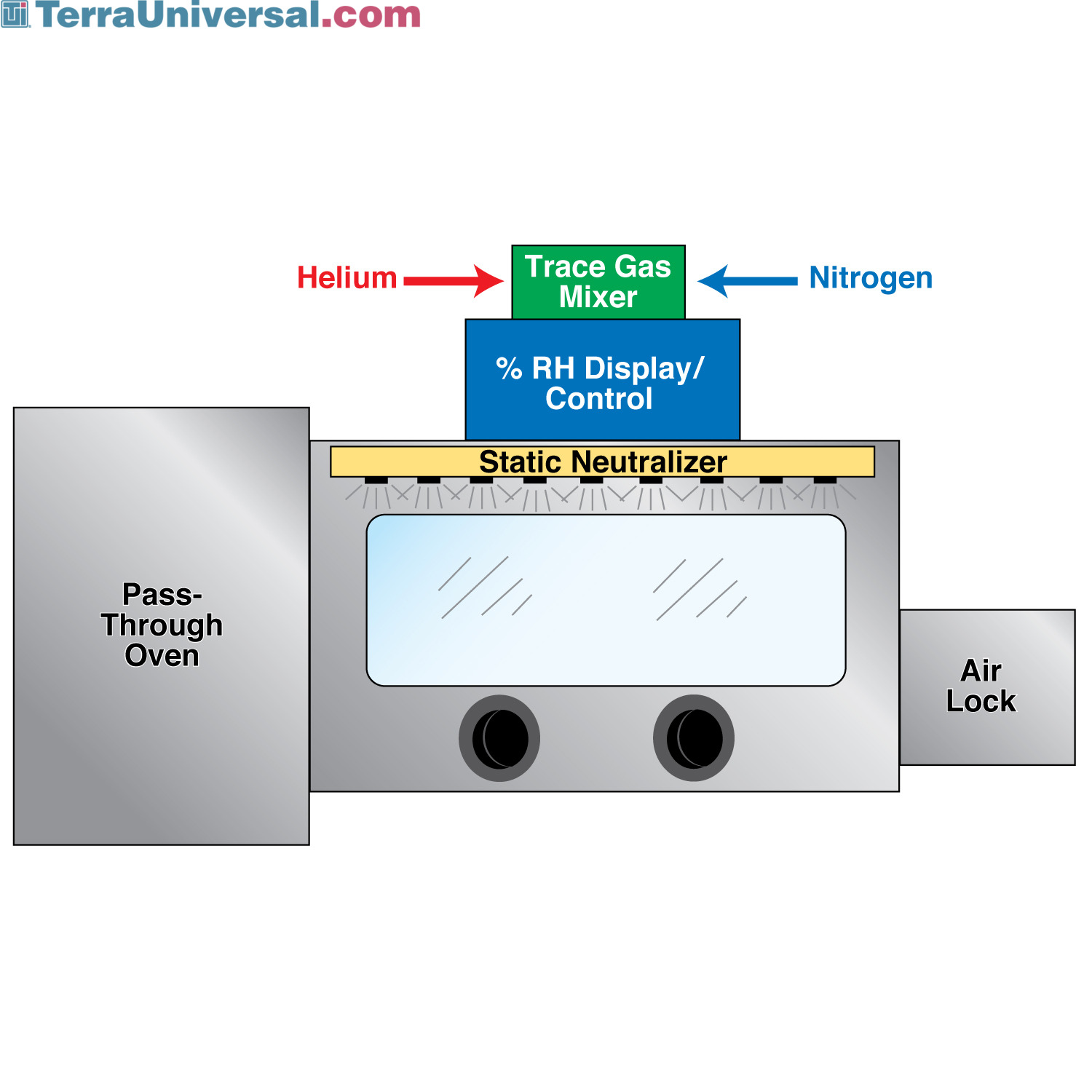

Trace Gas Seam Welding Glove Box

This glove box incorporates a pass-through vacuum/nitrogen oven for parts drying and gas controls to produce a He/N trace gas mixture

Stable Temperature/Humidity Containment Glovebox

This glovebox safely contains potential biohazards while providing a stable temperature (-2°C to 36°C) and humidity (0 and 75% RH). The dry nitrogen feed gas and ultrasonic humidifier control RH, and a bag-in/bag-out port simplifies waste removal.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Manufacturer, Distributor and Service Provider

Terra is not just a product manufacturer, we provide a suite of services to help our customers navigate the complex process of ensuring their equipment is operational

Custom Product Designs

Product customization is no problem, Terra’s engineering team will work with you to design a product that meets your unique requirements

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Dual Purge™ and NitroWatch™ Work Together to Fully Automate RH Control

    Terra's Dual Purge™ and NitroWatch™ operate in tandem to precisely and automatically control the flow of nitrogen and maintain a preset humidity level (from ambient to 0% ± 1.5% RH), no matter how operating conditions may change.
  • Data Logging with 113,000 Readings at User Defined Intervals

    Terra's Smart® IsoDry® Nitro-Watch™ logs RH, temp, door open/close, purge on/off, and sensor removal/attachment. The max data file size is roughly 4 MB or 113,000 readings. This is approximately 32 hours of data when logging at 1 second intervals, 2 weeks at 10 second intervals, 6 weeks at 30 second intervals, or 12 weeks at 1 minute intervals. When the system reaches the 4MB limit, data begins to wrap, overwriting oldest data with new.
  • Plug & Play Data Logging

    Plug in a USB flash drive to your Smart® IsoDry® Nitro-Watch™ to transfer data in .CSV format. No software required.
